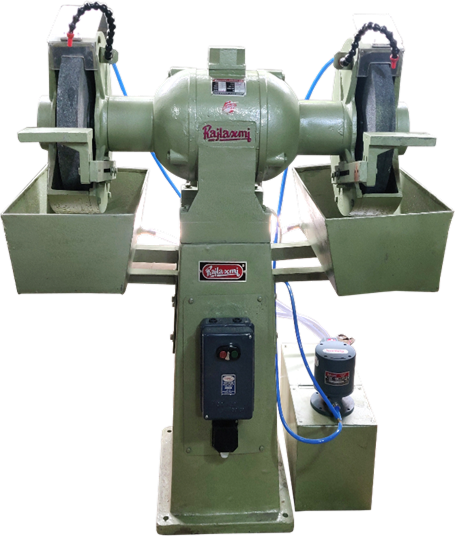

PEDSTAL GRINDER WITH COOLANT SYSTEM
Rajlaxmi make Pedestal Grinders are suitable for use for forging Industries, foundries and for heavy duty grinding jobs. “Rajlaxmi” Make Heavy Duty Bench Grinders are available from 2 HP to 5 HP and in 1440 RPM and 2800 RPM as per application of use. These are customized as per the specifications of our clients and are designed and developed in accordance with the latest Indian standards. Thus, our state-of-the-art facilities and technical expertise has helped us considerably in maintaining excellence throughout our business operations’ pedestal grinder is a similar or larger version of grinder that is mounted on a pedestal, which may be bolted to floor or may sit on rubber feet.
Specifications
| MODEL NO. | H.P. | K.W. | PHASE | R.P.M. | WHEEL CENTER DIST.(MM) | CENTER HEIGHT (MM) | WHEEL SIZE(INCH) | APPROX WT. KG |
|---|---|---|---|---|---|---|---|---|
| RPG-04 | 5 | 3.7 | 3 | 1440 | 810 | 970 | 14” X 2” | 280 |
| RPG-05 | 5 | 3.7 | 3 | 1440 | 810 | 970 | 16” X 2” | 300 |
| RPG-08 | 7.5 | 5.5 | 3 | 1440 | 810 | 970 | 14’’X2’’ | 310 |
| RPG-09 | 7.5 | 5.5 | 3 | 1440 | 810 | 970 | 16’’X2’’ | 330 |
Application
- Precision Grinding – Achieving fine surface finishes on hardened materials
- Tool & Cutter Sharpening – Maintaining sharp edges on cutting tools
- Deburring & Surface Cleaning – Removing rust, scale, and imperfections from metal parts
- Heavy Manufacturing & Foundries – Shaping and refining large metal components
- Aerospace & Automotive – Grinding engine parts with minimal thermal distortion
